LATERAL PIPE BURSTING SYSTEM
MINIMUM PIT. MAXIMUM PROFIT.
To satisfy the rising demand for sewer lateral replacements, plumbers are turning to trenchless lateral replacement. Trenchless lateral replacement can spare your customer the unpleasant side effects of open-cut lateral replacement and at the same time grow your business. The GatorBurst lateral replacement system is a portable, cost-effective and efficient method of replacing 2″ to 6″ (5 to 15 cm) lateral pipes in a minimum amount of time and unlike lining the new pipe can be the same size or even a size larger that the old pipe.
- SUPERIOR PORTABILITY: Breaks down into lighter components for easy assembly & transportation
OPTIONAL EXTRACTION CAGE: Allows for the removal of the unit and the burst head in one easy lift
POSITIVE CABLE GRIP SYSTEM: Second cable grip secures cable while recycling, reducing the “bungee effect”
HIGH PRODUCTION: 30 tons of pulling force capable of bursting up to 6 feet per minute
QUICK GRIP® BURST HEADS: Our 4 and 6″ burst heads securely connect to pipe without any tools required
- VERSATILITY: Runs on any power supply capable of 3,000 psi

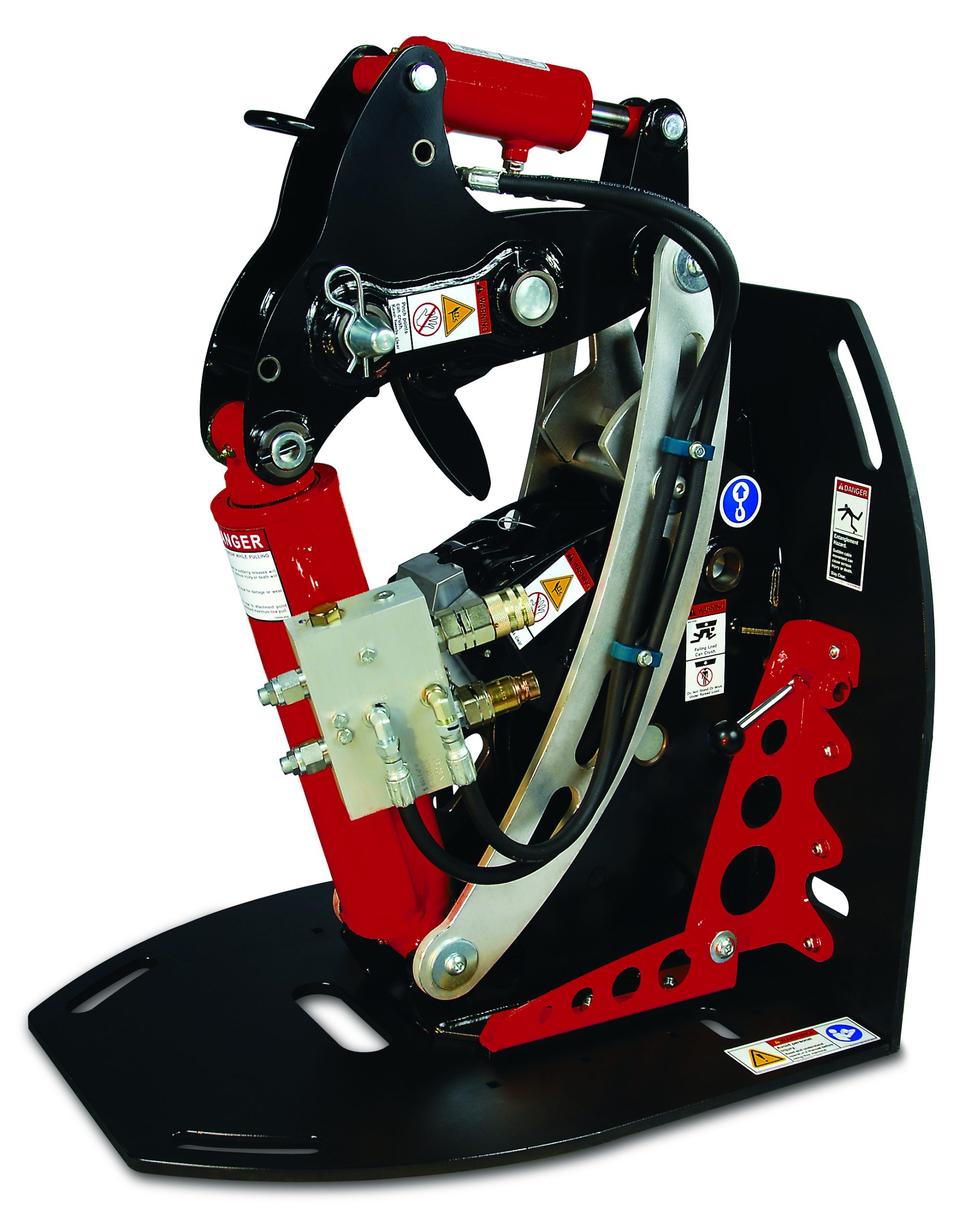

|RIG SIZE L/W/H – IN (CM)||25.3/23.5/36.5 (64.2/59.7/92.7) mounted on resistance plate|
|TOTAL SYSTEM WEIGHT – LB (KG)||364 (165)|
|OPTIONAL EXTRACTION CAGE WEIGHT – LB (KG)||52 (23.6)|
|MAXIMUM TONNAGE||28.65 tons @ 3,000 psi|
|MIN/MAX PSI REQUIREMENTS – PSI (BAR)||2,200-3,000 (152-207)|
|CABLE LENGTHS – FT (M)||75, 100, 150 (22.9, 30.5, 45.7)|

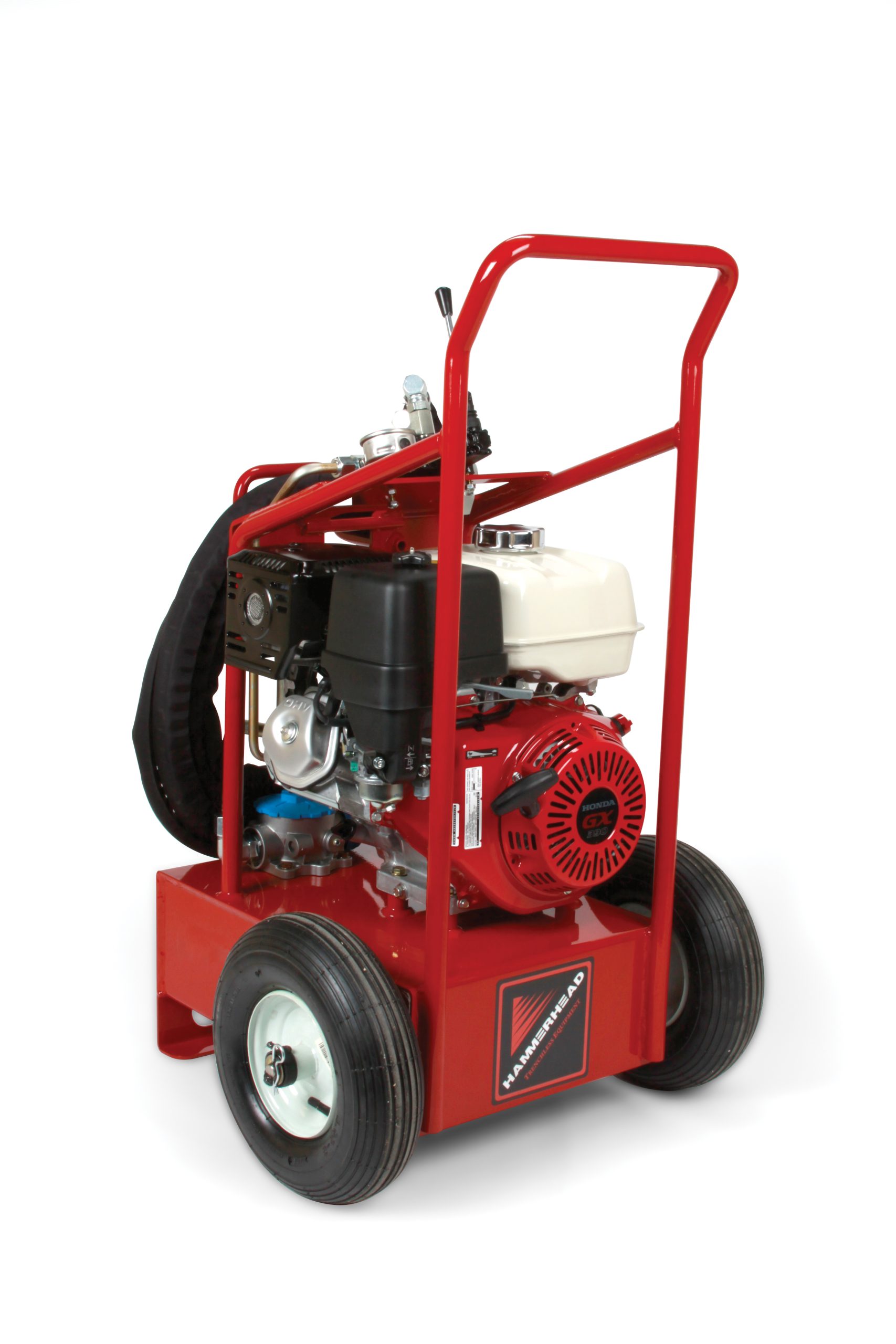

|CONTROL UNIT||13 HP Honda®|
|CONTROL UNIT PUMP FLOW – G/MIN (L/MIN)||6 (23) @ 3,600 rpm|
|CONTROL UNIT RIG SIZE L/W/H – IN (CM)||22.5/26.2/35 (57.1/66.5/88.9)|
|CONTROL UNIT WEIGHT – LB (KG)||250 (114)|
